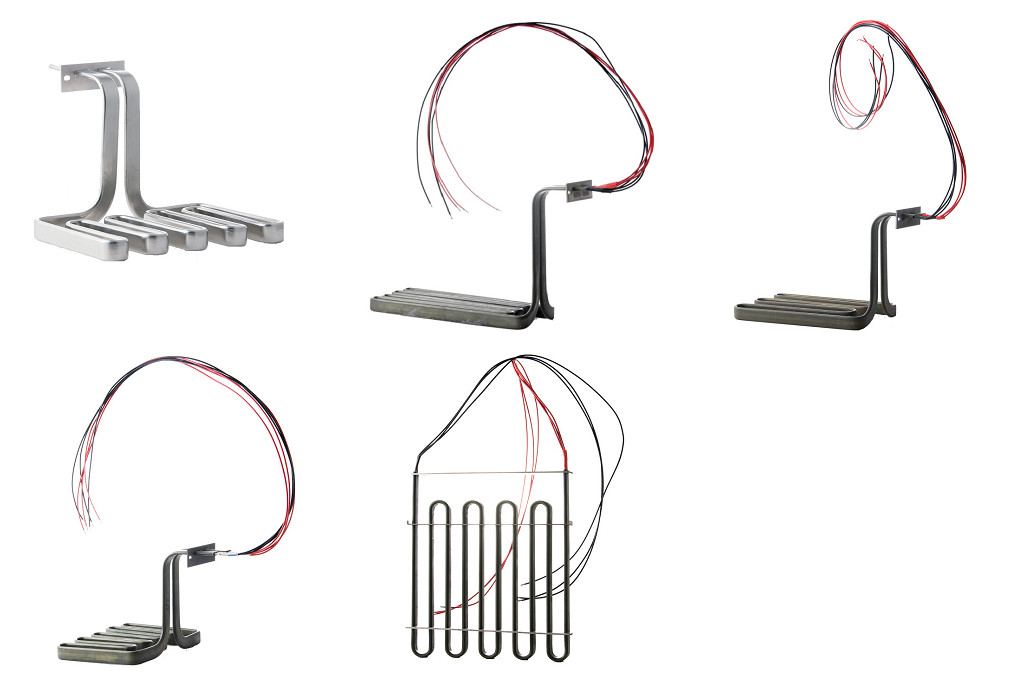

扁管電熱管
SUS304，INCOLOY800
SUS304
| 外徑 |
成分明細 |
適用環境 |
使用溫度界限 |
| 25.4mm X 6.35mm |
Ni 8.0～10.5 |
空氣加熱 |
600°C以下 |
| 25.7mm X 6.0mm |
Cr 18.0～20.0 |
油中加熱 |
|
| |
Ti －－－－ |
|
|
| |
Mn 2.00MAX |
|
|
| |
Mo －－－－ |
|
|
INCOLOY800
| 外徑 |
成分明細 |
適用環境 |
使用溫度界限 |
| 25.4mm X 6.35mm |
Ni 30.0～35.0 |
空氣加熱 |
800°C以下 |
| 25.7mm X 6.0mm |
Cr 19.0～23.0 |
油中加熱 |
|
| |
C 0.10 MAX |
|
|
| |
Mn 1.50 MAX |
|
|
| |
SI 1.00 MAX |
|
|
| |
CU 0.75 MAX |
|
|
特徵
- 可按客戶使用地區需求設計輸入電壓、功率。
- 可按客戶使用環境需求設計輸入外型、表面處理。
- 可按需求添加法蘭片、緊固件。
- 封口:環氧樹脂。
產品用途範例
