FINNED HEATER

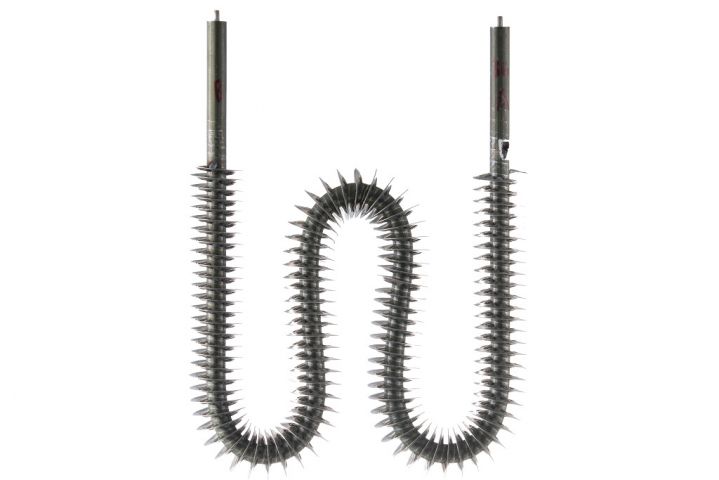

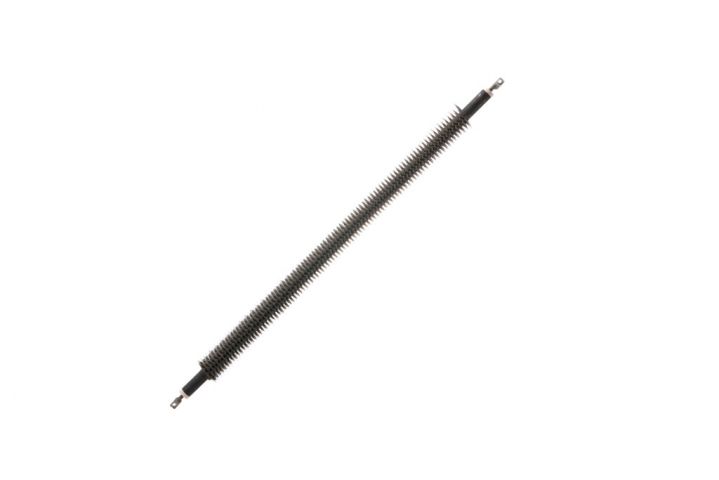

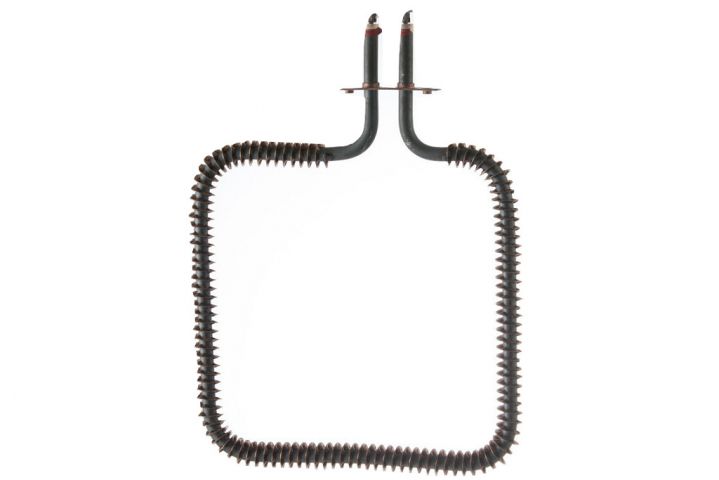

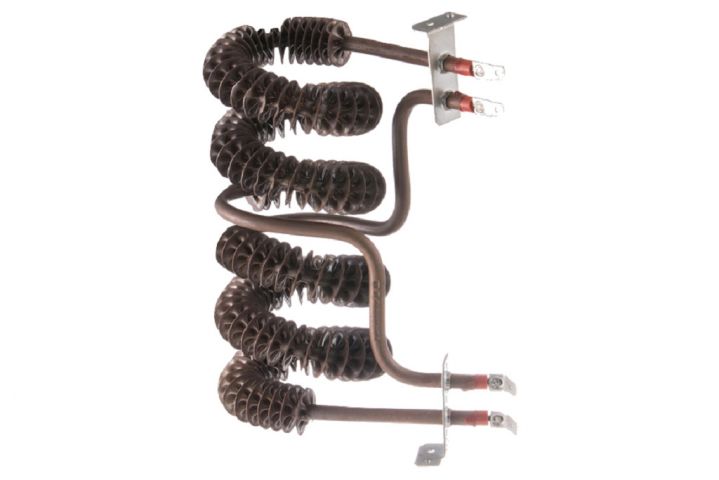

Fin heaters are available in two types:
sheath heaters with steel bands wound around them,and sheath heaters with inserted and caulked aluminum plates in them。

Contact Back

Features

  • Most suitable for air heating due to the large surface areas provided by the fins。

Application examples

  • Microwave oven ranges、panel heaters、baseboards、and heaters。
  • etc。

Precautions

  • Some restrictions are placed on bending of the heaters,since fins are attached to the heaters。
  • Cannot be used for in-water heating。

SUS304

  • Details of contents : Ni 8.0~10.5, Cr 18.0~20.0, Mn 2.00MAX, Fe Bal
  • Proper environment : Air heating
  • Limit service temperature(UL) : 600°C or less

INCOLOY840

  • Details of contents : Ni 18~22, Cr 18~22, Ti 0.6MAX, Mn 1.00MAX, Fe Bal
  • Proper environment : Air heating
  • Limit service temperature(UL) : 800°C or less

INCOLOY800

  • Details of contents : Ni 30~35, Cr 19~23, Ti 0.15~0.6, Mn 1.5MAX, Fe Bal
  • Proper environment : Air heating
  • Limit service temperature(UL) : 800°C or less

A1060

  • Details of contents : Si 0.25MAX, Fe 0.35MAX, Cu 0.05MAX, Mn 0.03MAX, Al Bal
  • Proper environment : Air heating
  • Limit service temperature(UL) : 260°C or less
