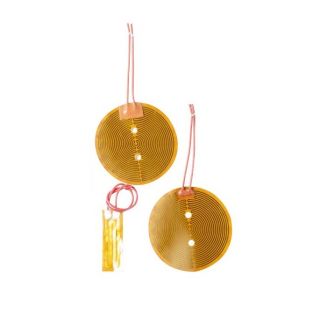

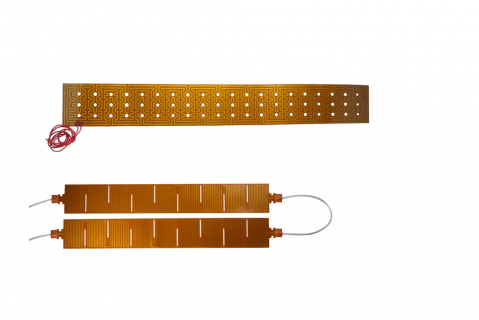

PI Heating Film

Features(No Heat Sink)

• The etched foil is the heating layer, vulcanized the PI film to be insulated layer. Usually required adhesive or not。
• Max voltage：380V。
• Max watt：1000W(According to customer's requirement)。
• Max watt density：1W/cm2(Over 0.5W/cm2, need to assemble temperature controller)。
• Usage Temperture：150℃ Max。

Application examples

• Keep Warm，Preheat。
• etc。

Features(With Heat Sink)

• PI heater paste on heat sink, used on the keeping warm cabinet。
• Max voltage：240V。
• Max watt：265W。
• Watt density：1.2W/cm2。

Application examples

• Keeping Warm Cabinet。
• etc。
