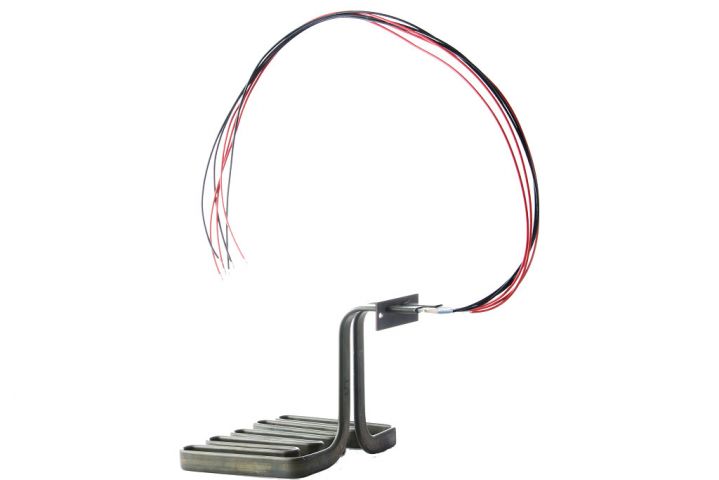

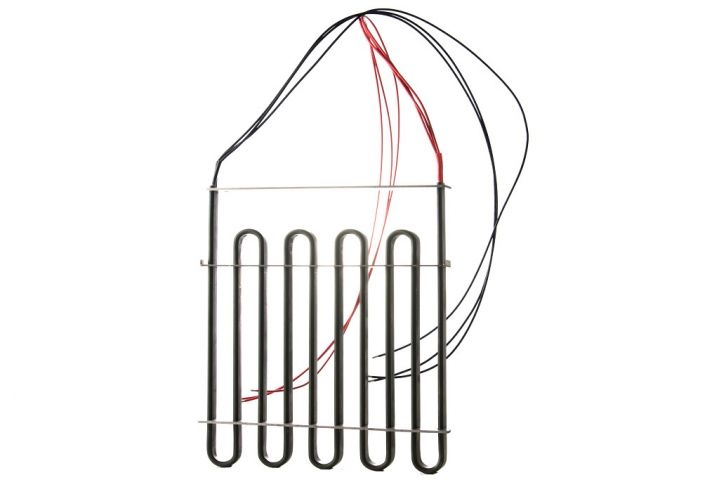

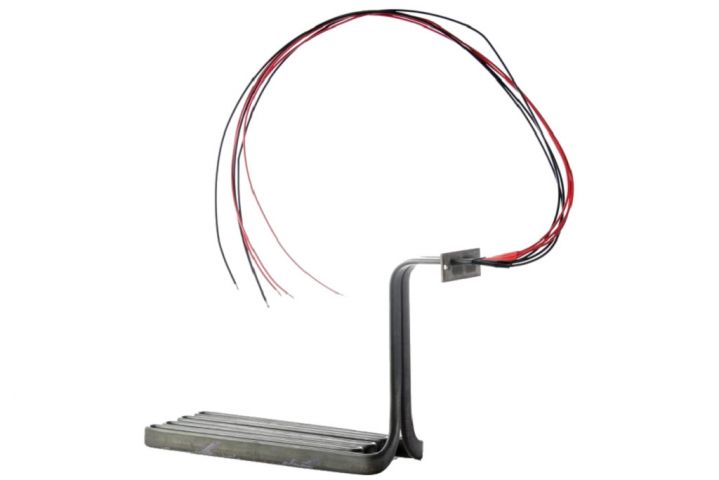

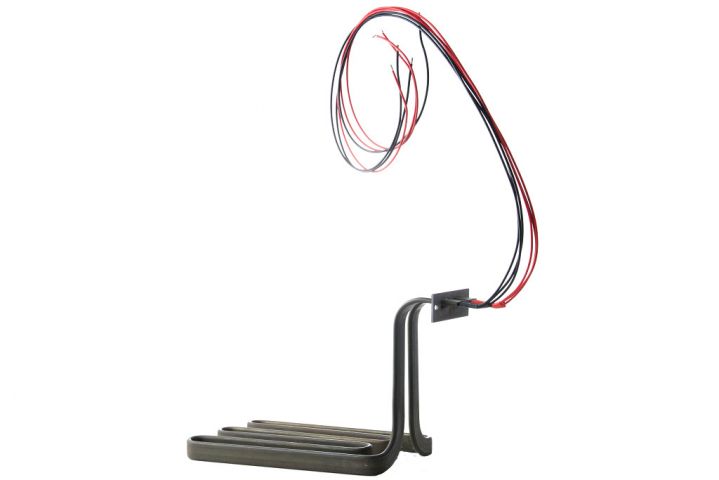

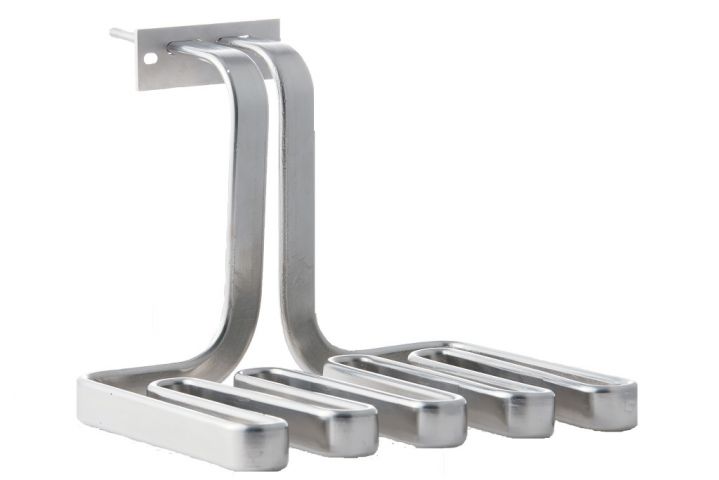

FLAT BAR ELEMENT

SUS304,INCOLOY800

Contact Back

SUS304INCOLOY800

SUS304

  • Available diameter : 25mm X 7mm
  • Details of contents : Ni 8.0~10.5, Cr 18.0~20.0, Mn 2.00MAX, Fe Bal
  • Proper environment : Oil heating, Air heating
  • Limit service temperature(UL) : 600°C or less

INCOLOY800

  • Available diameter : 25mm X 7mm
  • Details of contents : Ni 30~35, Cr 19~23, Ti 0.15~0.6, Mn 1.5MAX, Fe Bal
  • Proper environment : Oil heating, Air heating
  • Limit service temperature(UL) : 800°C or less


Features

  • Voltages and waltages can be custom made according to customers need and local environments。
  • Shapes and surface finishing can be designed based on application environments。
  • Flanges and other fastening parts can be added as required。

Application examples

  • Tank、deep fryer or radiating。
  • etc。
