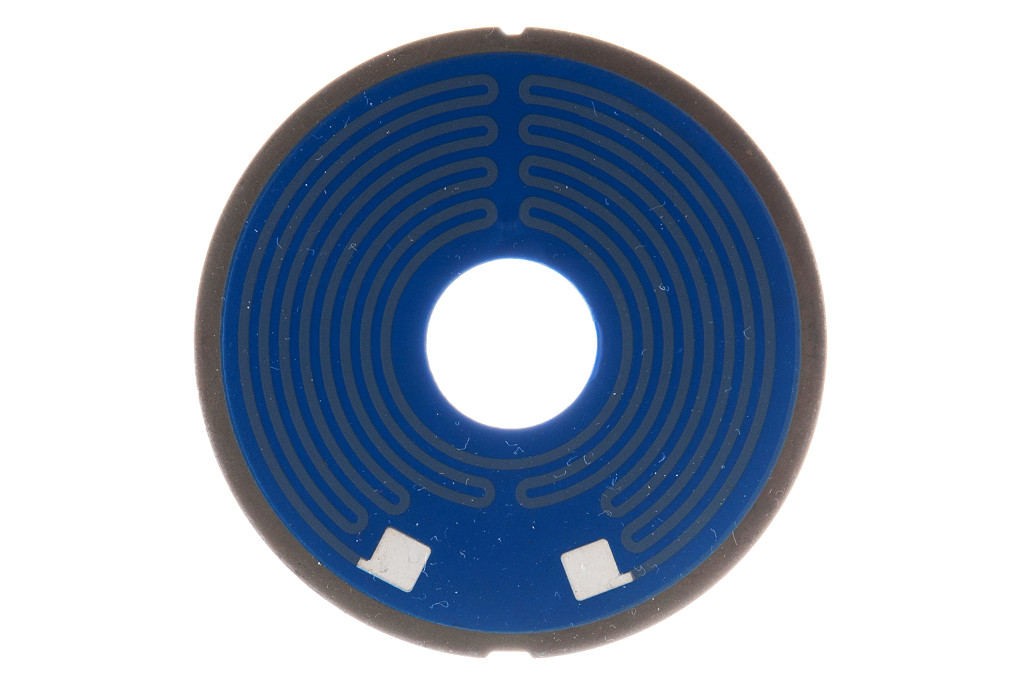

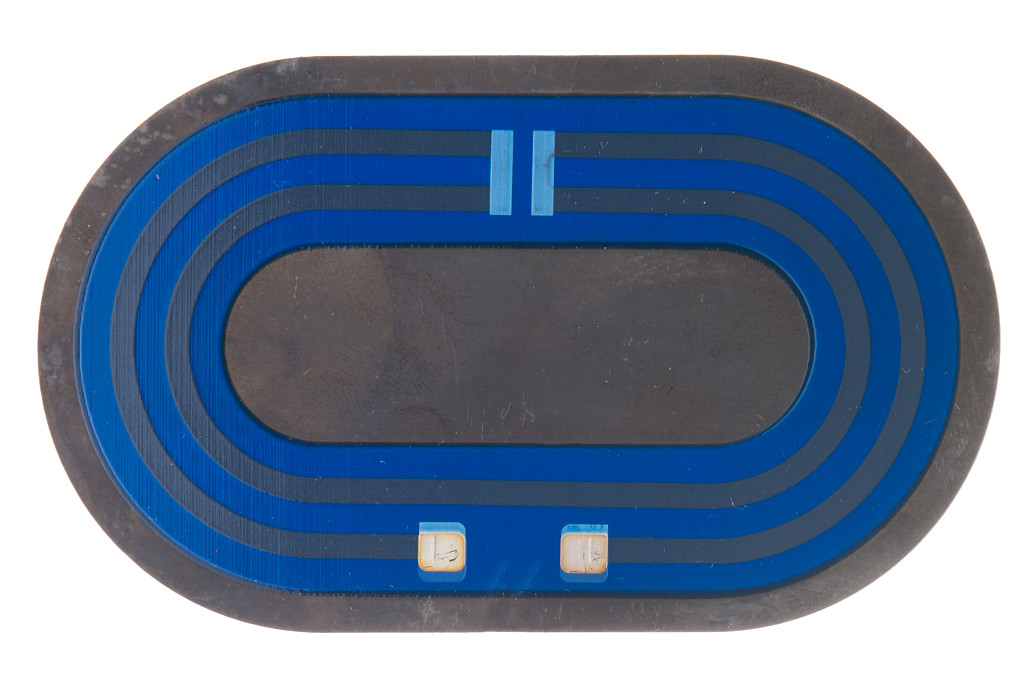

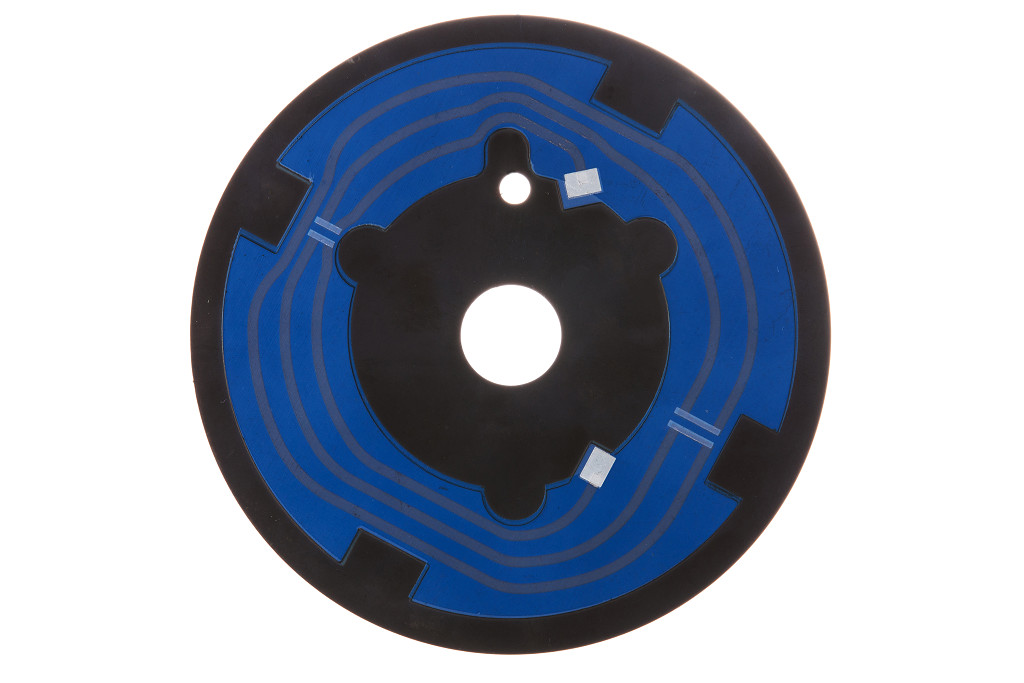

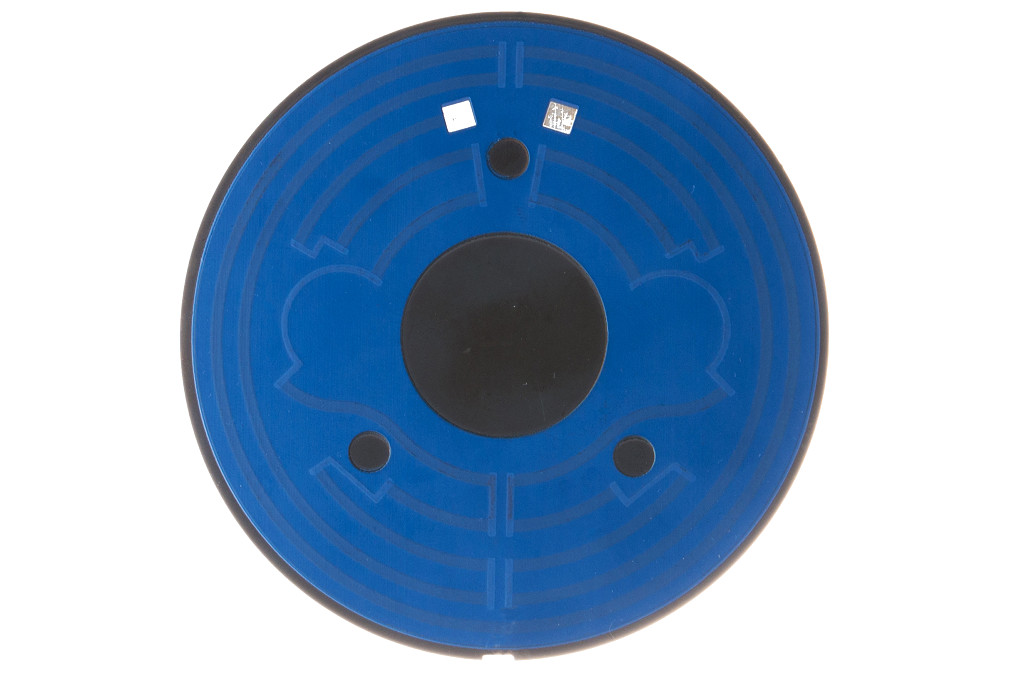

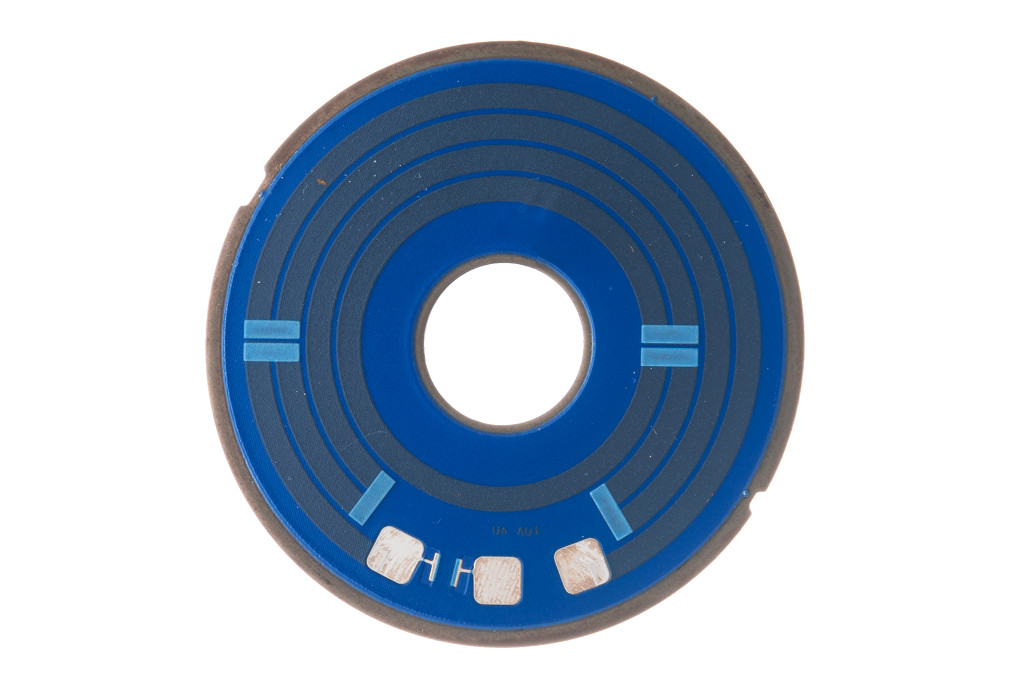

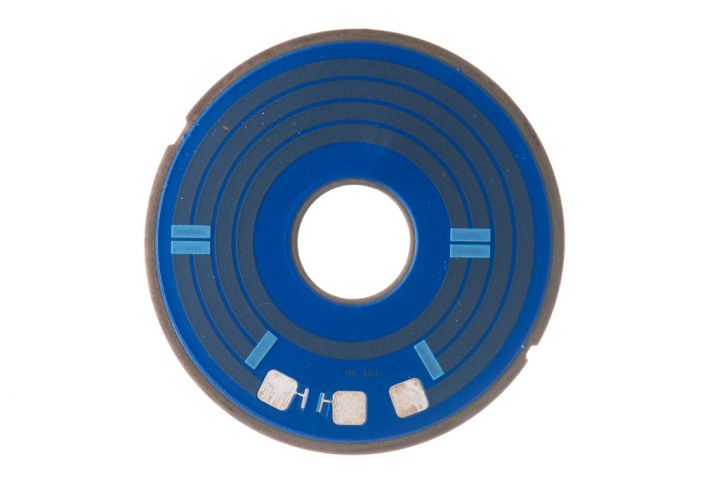

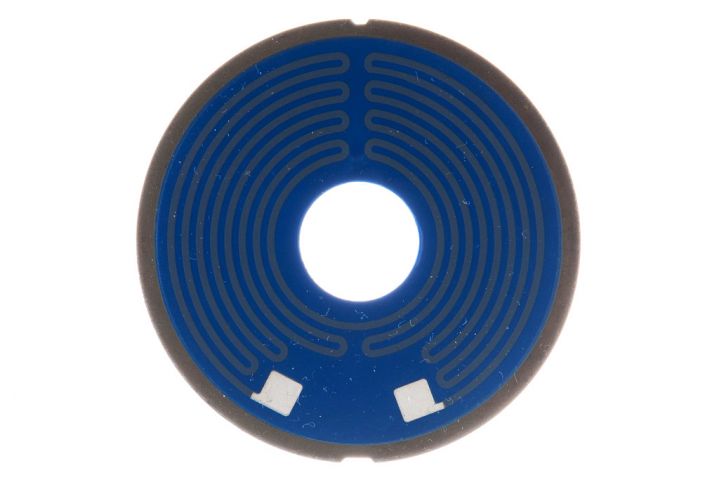

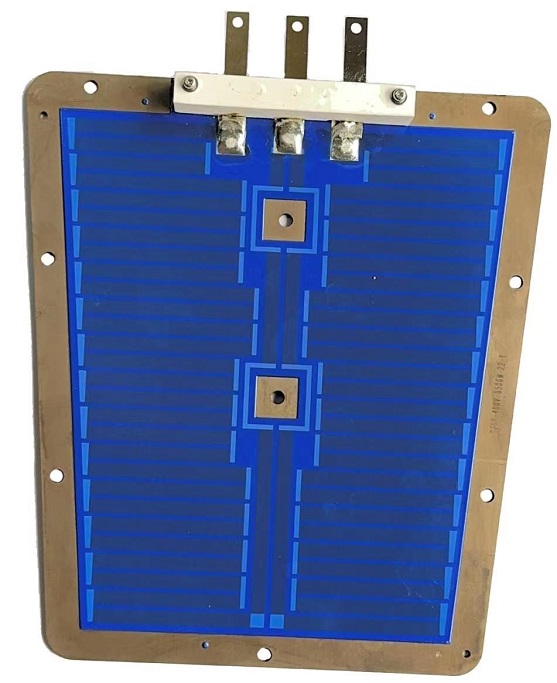

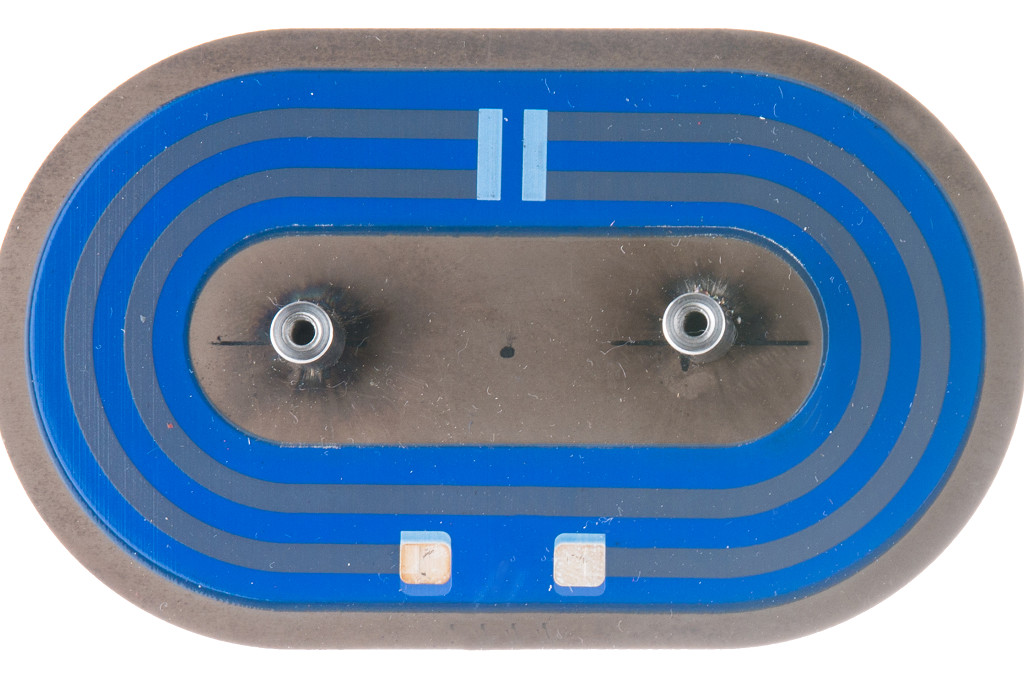

THICK FILM HEATING ELEMENT

SUS304,SUS430

Contact Back

SUS304SUS430

SUS304

  • Dimension : ø10 - 250mm,t 1.2 - 2.5mm
  • Details of contents : Ni 8.0~10.5, Cr 18.0~22.0, Mn 2.0MAX, Fe Bal
  • Proper environment : Air heating,Kettle heating plate
  • Limit service temperature(UL) : 400°C or less

SUS430

  • Dimension : ø10 - 250mm,t 1.2 - 2.5mm
  • Details of contents : Ni ≦ 0.60, Cr 16.0~18.0, Mn 1.0MAX, Fe Bal
  • Proper environment : Air heating,Kettle heating plate
  • Limit service temperature(UL) : 400°C or less

Features

  • Light, compact and flexible in design of sizes and shapes, steel plate with printed resistance can be directly used as a heating element or heating cavity。
  • The structure of appliances with stainless steel thick film heaters will be relatively easier, more compact and exquisite。
  • Temperature rise faster and more stable with lower heat capacity。

Application examples

  • Coffee makers、Steam iron、hair straightener、air heater。
  • etc。
